Hand Pallet Truck
Hand Pallet Truck Manufacturer and Supplier in India
3 Ton 550 x 1150 (All Size Available)
Rs. 13500
(Taxes to be paid extra)
Brand: SRE
SKU: SRE 101
Min Order Qty: 1
A hand pallet truck is a way to move a loaded pallet inside a warehouse or factory floor. It does not need a battery, fuel or any kind of license. One person simply pumps the handle to l the load. Pushes it to the next spot.
This guide explains how a hand pallet truck works. It shows which fork size fits your pallets best. It also highlights the difference between a well-built pallet truck and a poor one. You will find a buying checklist and some basic maintenance advice.
SRE Material Handling Equipment Private Limited has been supplying material handling equipment from Ahmedabad since 2011. This guide draws on real-world experience on the factory floor.
What Is a Hand Pallet Truck?
This tool is also known as a pallet jack or pallet trolley. It lifts a pallet a few centimetres off the ground. After lifting, the operator pushes it to where it needs to go.
There are four parts:
- Forks: these slide, into the openings of the pallet and hold the load in place.
- Hydraulic pump: this is used by the operator, who pumps the handle to raise the forks.
- Handle: this controls the lift and lower functions of the device.
- Wheels: there are steering wheels at the handle end and load wheels at the tips of the forks.
How It Works
The handle has three settings. Each one is easy to understand.
Lift: move the handle up and down. Oil flows into the cylinder. Lifts the forks.
Neutral: the forks stay at the height while you move around.
Lower: press the release lever. The forks go down in a controlled way.
A new operator feels sure of themselves after a few hours. The job site’s safety training is always the employer’s job to provide.
Hand, Semi-Electric, or Battery-Operated: Which One Do You Need?
Choose by how often and how far you move pallets.
| Type | Lift | Travel | Best for |
|---|---|---|---|
| Manual (hand) truck | Manual pump | Manual push | Short runs, light to medium daily use |

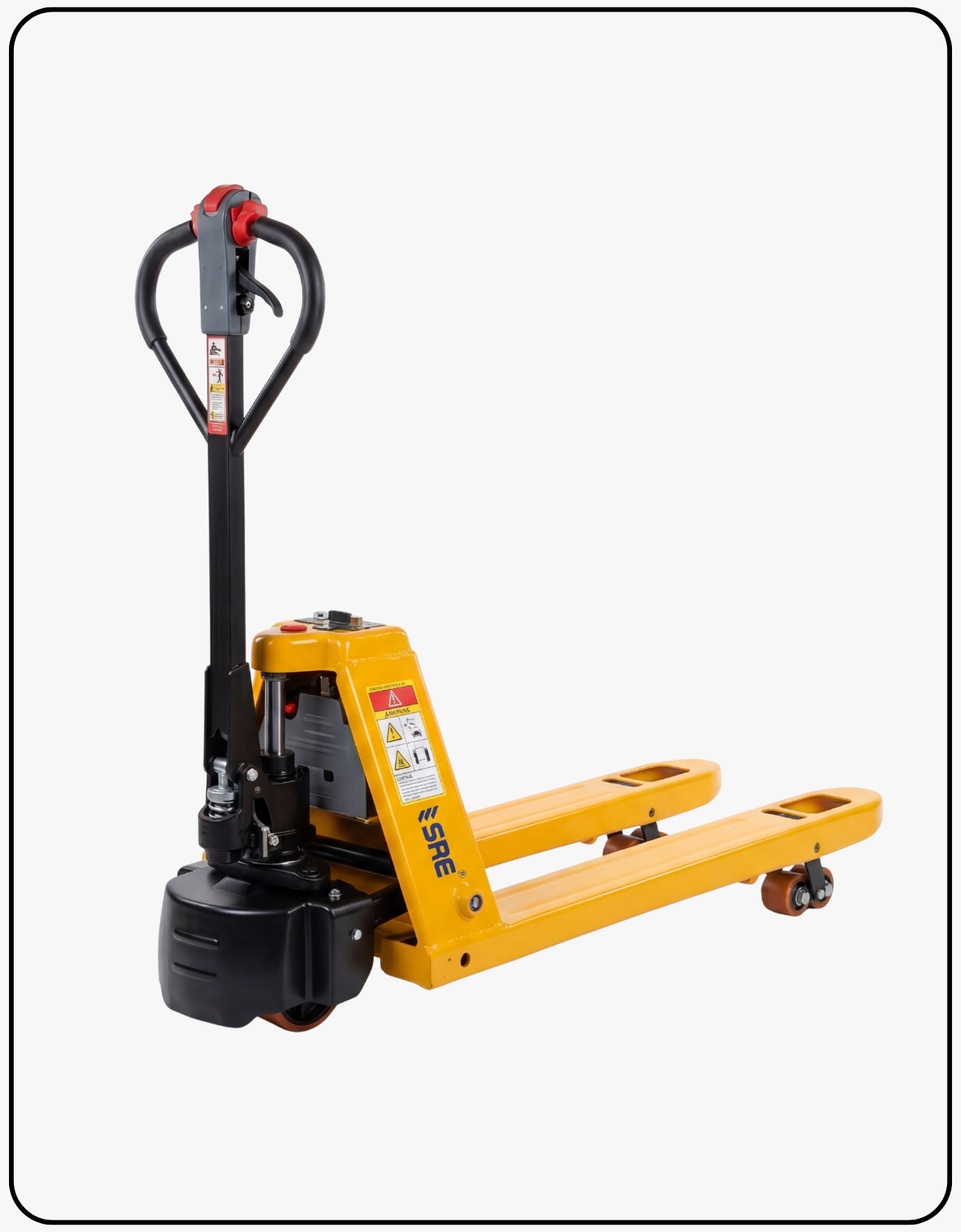

| Semi-electric | Battery pump | Manual push | Frequent lifting, short distances |

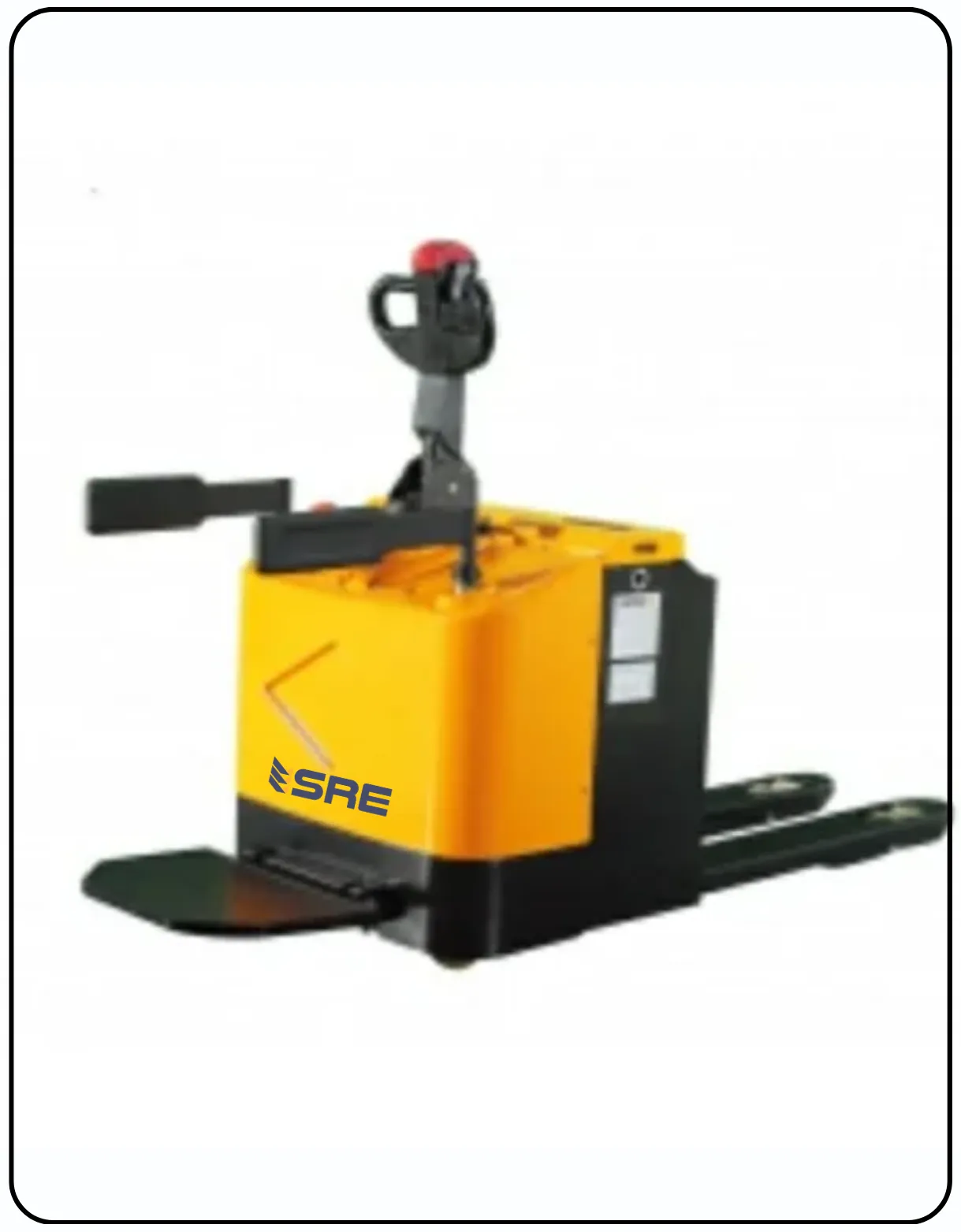

| Fully battery operated | Battery pump | Motor drive | Long runs and multi-shift work |

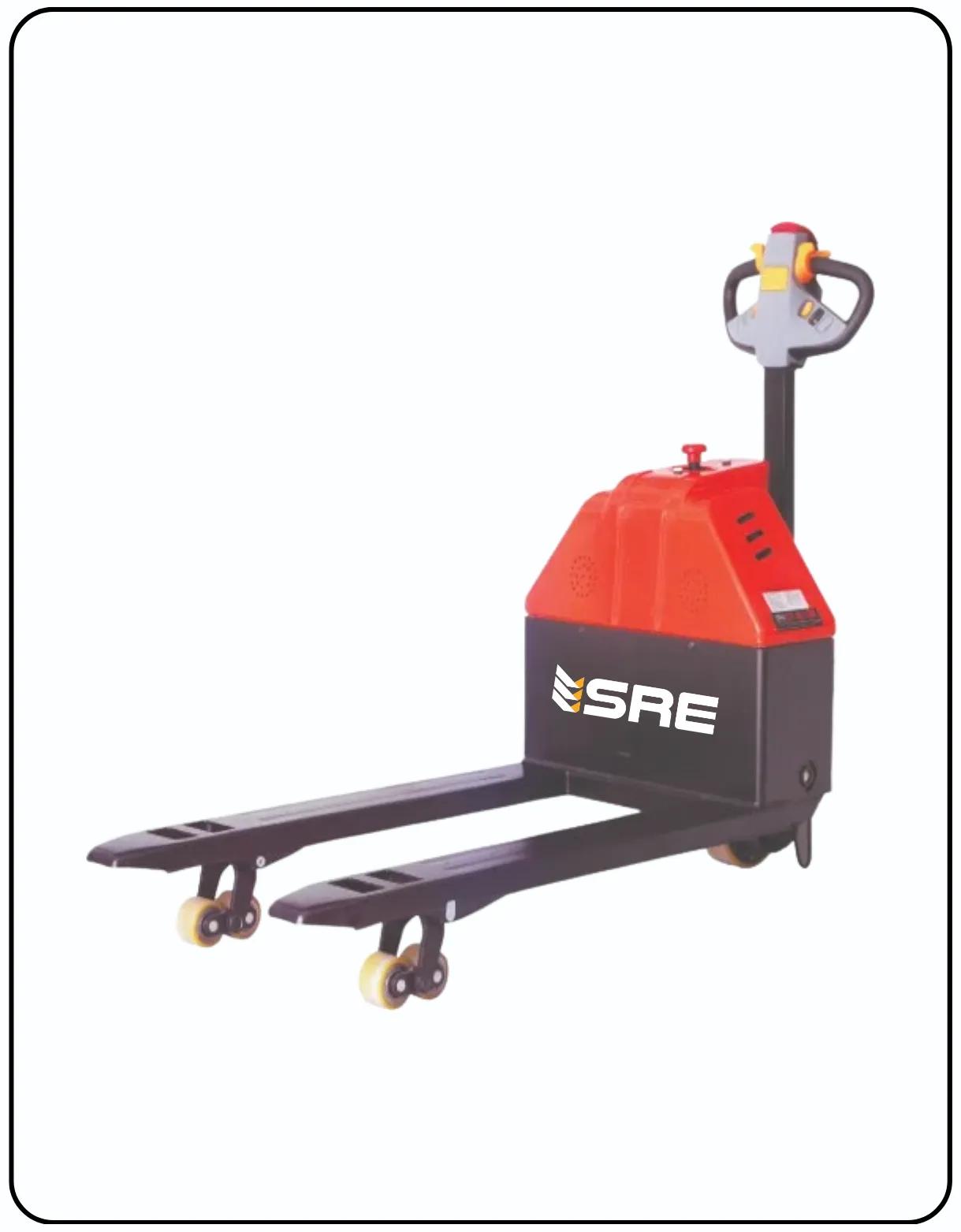

Semi-electric to the walkie type battery operated pallet truck page. Fully battery-operated to the fully battery-operated pallet truck page.
For most Indian warehouses, a manual truck covers the majority of daily moves. It also has the lowest running cost.
Hand Pallet Truck Sizes and Fork Options
Fork size determines if the truck can enter your pallet smoothly. SRE offers eight configurations, all with a 2.5-ton rated capacity.
| Fork size (mm) | Where it works best |
|---|---|
| 600 × 550 | Compact pallets, narrow aisles, pharmaceutical storage |
| 800 × 550 | Standard wooden pallets in FMCG and food processing |
| 900 × 550 | Cold storage and chemical warehouses |
| 1150 × 550 | Steel, timber and building materials |
| 1220 × 685 | Engineering goods and automotive parts |
| 1500 × 550 | Paper, textile and roll-goods pallets |
| 1500 × 685 | Export yards and logistics hubs |
| 1800 × 550 | Marble slabs and long structural sections |
If your pallet does not fit the size SRE can design custom fork widths, lengths and reinforced frames to match your needs.
How to Choose the Best Hand Pallet Truck in India
The best hand pallet truck in India is the one that matches your load, pallet and floor. Before you order, check these six points:
Load weight: pick a rating above your pallet, never equal to it.
Pallet dimensions: measure the opening width and depth.
Fork length: the forks should support the pallet without overhang.
Floor surface: smooth concrete suits polyurethane wheels. Rougher floors suit nylon wheels.
Environment: wet or hygiene-sensitive areas need a stainless steel pallet truck.

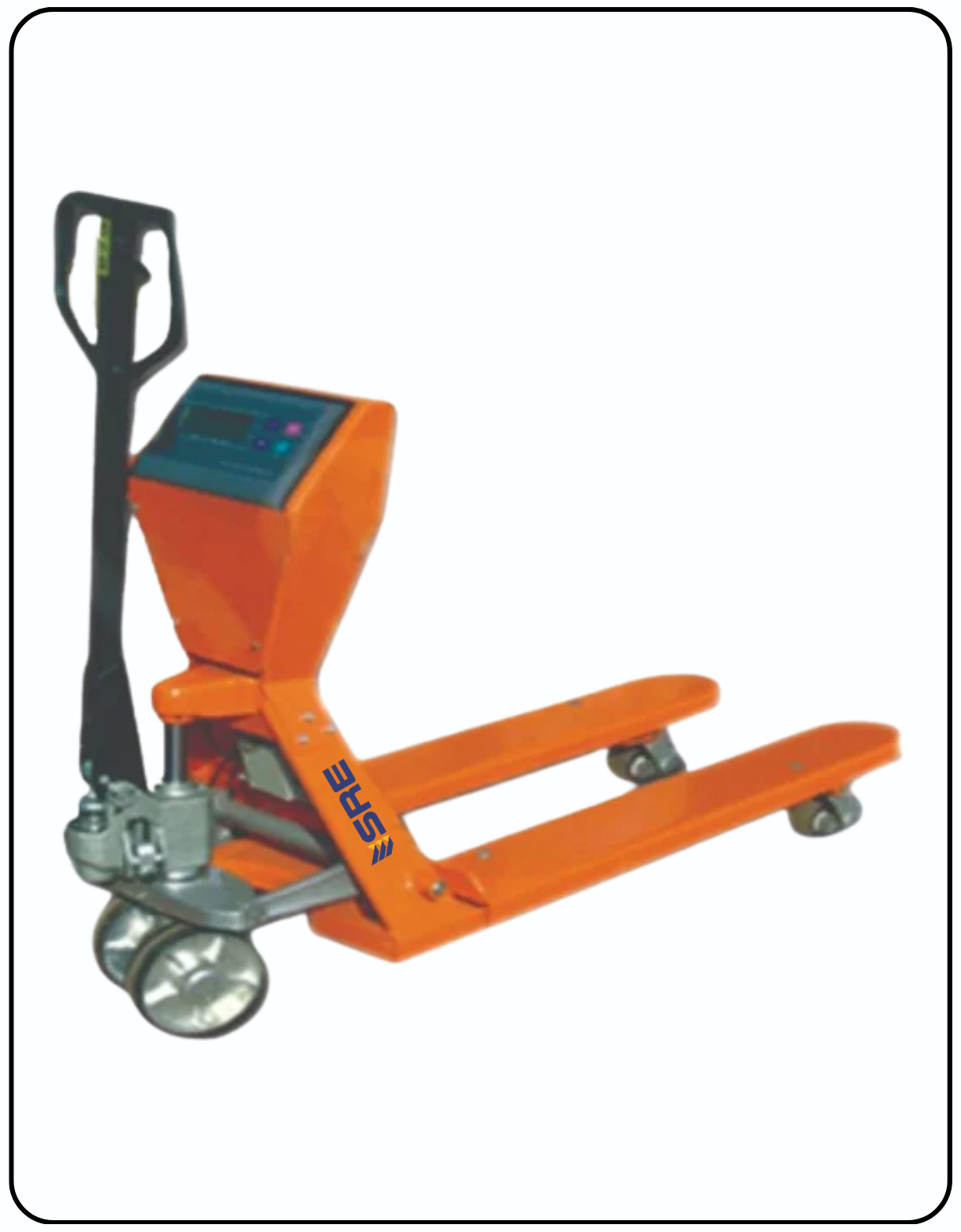

Tasks: weighing while moving needs a weight scale pallet truck. Paper rolls need a reel pallet truck.
What Makes a High-Quality Hand Pallet Truck?
Two trucks can appear the same. Last for different amounts of time. A high-quality hand pallet truck proves its worth in five areas:
Steel and welds: forged steel forks and clean welds fight against bending and cracks.
Hydraulic pump: good seals keep the load in place without it dropping.
Wheels: polyurethane or nylon wheels move smoothly. Protect the floor.
Handle design: a comfortable handle eases stress on the wrist and shoulder.
Entry design: a flat fork tip slides into plastic pallets without getting stuck.
Talk to any supplier. Ask to see these features up close. Pictures, by themselves, do not give you all the information you need.
Where Industries Use These Trucks
- Warehousing and distribution involves unloading at the dock putting goods away and staging items for dispatch and I have seen how efficient it can be.
- Manufacturing moves material to the production line and then moves finished goods to the packing area and I know the importance of timing.
- Cold storage and food requires moving items with clearance on wet floors and I have learned to keep paths dry and clear.
- Pharmaceuticals need smooth low‑vibration handling of stock and I take care to protect each item.
- Retail and FMCG involve replenishment in distribution centres and stores and I watch the shelves get full every day.
- Automotive and engineering use forks, for large components and I make sure the forks fit the parts without strain.
Safety and Maintenance Tips
A hand truck is safe when people follow a simple rules.
- Never carry more than the hand truck can handle.
- Make sure the load is in the middle between the forks.
- Pull the truck when going straight and push it up slopes when needed.
- Never get on the forks.
- Lower the forks all the way when you leave the hand truck.
Keeping the hand truck in shape takes only a little time. Check the oil level, how much the wheels have worn down, how loose the handle is and if there are any cracks in the frame on a schedule. Change the wheels when they are worn. This helps keep the pump and the floor in shape.
The Real Cost of Ownership
Purchase price is one part of the total cost. A truck that is built well can last years. That truck needs no power and rarely stops work. A cheap truck may save a money when you buy it but it will cost more later for repairs and for time lost.
Manual handling also has a cost. Pushing pallets, by hand can cause fatigue and back injuries. A hand pallet truck can take most of that strain away. It is an investment that saves you pain and lost time.
Why Buy from SRE Material Handling Equipment?
SRE Material Handling Equipment Pvt Ltd. is a company that has earned ISO 9001-2015 certification. Mr Gaurang Patel started SRE. SRE has supplied more than fifteen thousand equipment solutions. SRE enjoys a client satisfaction rate of ninety-five per cent. SRE has received thirteen industry awards.
SRE offers eight fork sizes and also builds custom models.
SRE provides semi-electric and battery operated forks all, in one place.
SRE’s price starts at Rs. 13,500 For the three‑ton model, plus taxes. SRE gives guidance to help you pick the right model for your floor.
Need help choosing? Send SRE your load and pallet size. Call +91 9316208879. SRE will recommend a model. Provide a quote the same day.
Key Takeaways
- Make sure the size of the fork matches your pallet before you look at prices.
- Choose a load rating that’s higher than the weight of your heaviest pallet.
- Select. Materials that work well with your floor and the environment you are using them in.
- Check the oil, the wheels and the welds, on a basis.
- Buy from a maker that offers custom sizes and spare parts.
Frequently Asked Questions
Q1. What is the load capacity of a hand pallet truck?
- Most industrial units are rated between 1.5 and 3 tons. SRE builds its long-fork variants at 2.5 tons. Offers a 3-ton model.
Q2. What is the difference between a manual and an electric pallet truck?
- A manual truck uses a pump handle for lift and operator effort for travel. An electric pallet truck uses battery motors for lift and drive which reduces fatigue on frequent runs. (Link “electric pallet truck” to its product page.)
Q3. Which fork size is right for my operation?
- Standard Indian pallets usually take 800 × 550 mm or 1150 × 550 mm forks. Oversized loads may need 1500 mm or 1800 mm lengths. Contact SRE, for an application check.
Q4. Can I use it on outdoor surfaces?
- Standard trucks are made for level indoor floors. For -outdoor or textured floors choose pneumatic or heavy-duty nylon wheels and confirm with the manufacturer.
Q5. Do you offer custom fork sizes?
- Yes. SRE builds custom fork widths, fork lengths and frame reinforcements after checking your load and aisle limits.
